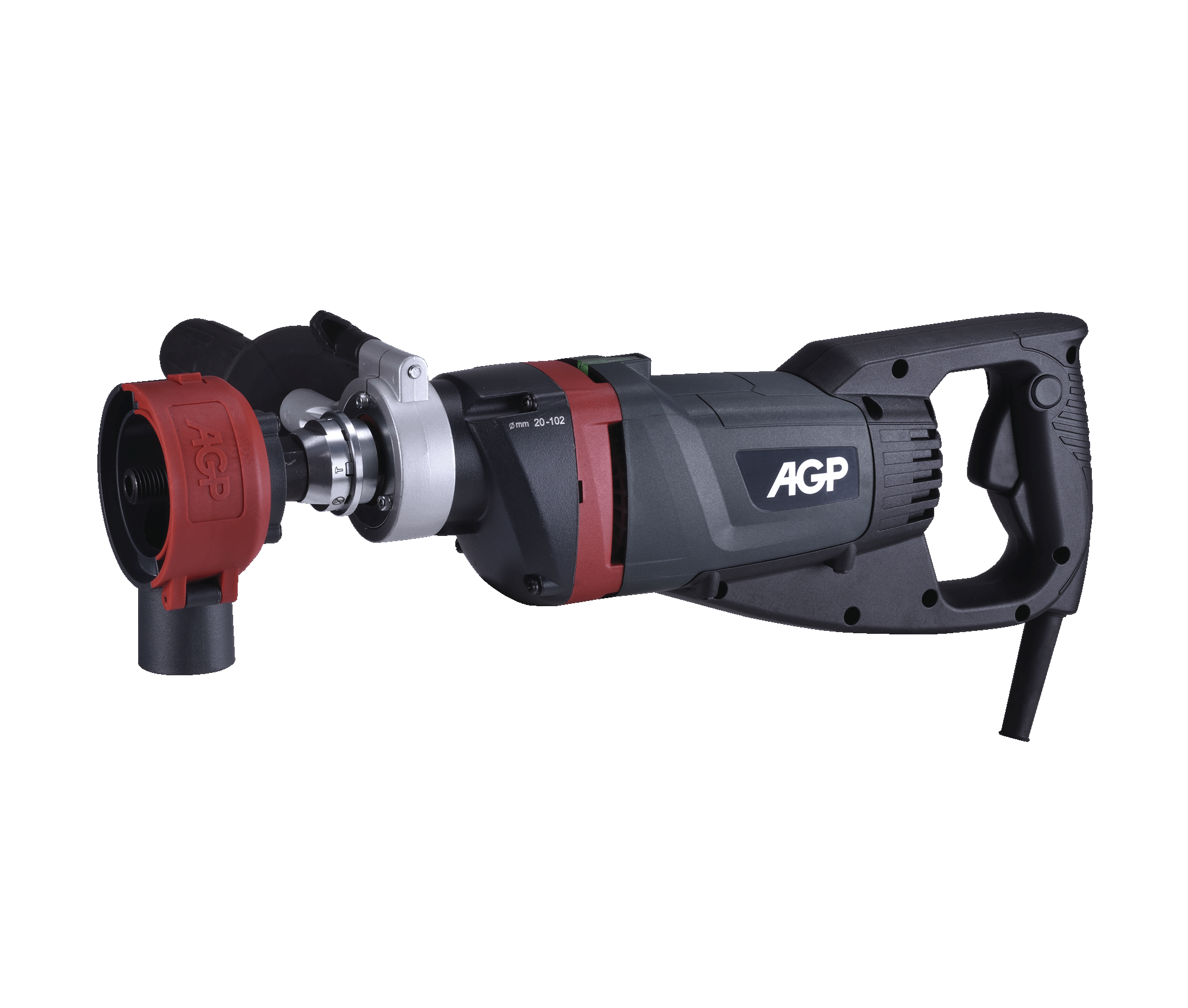

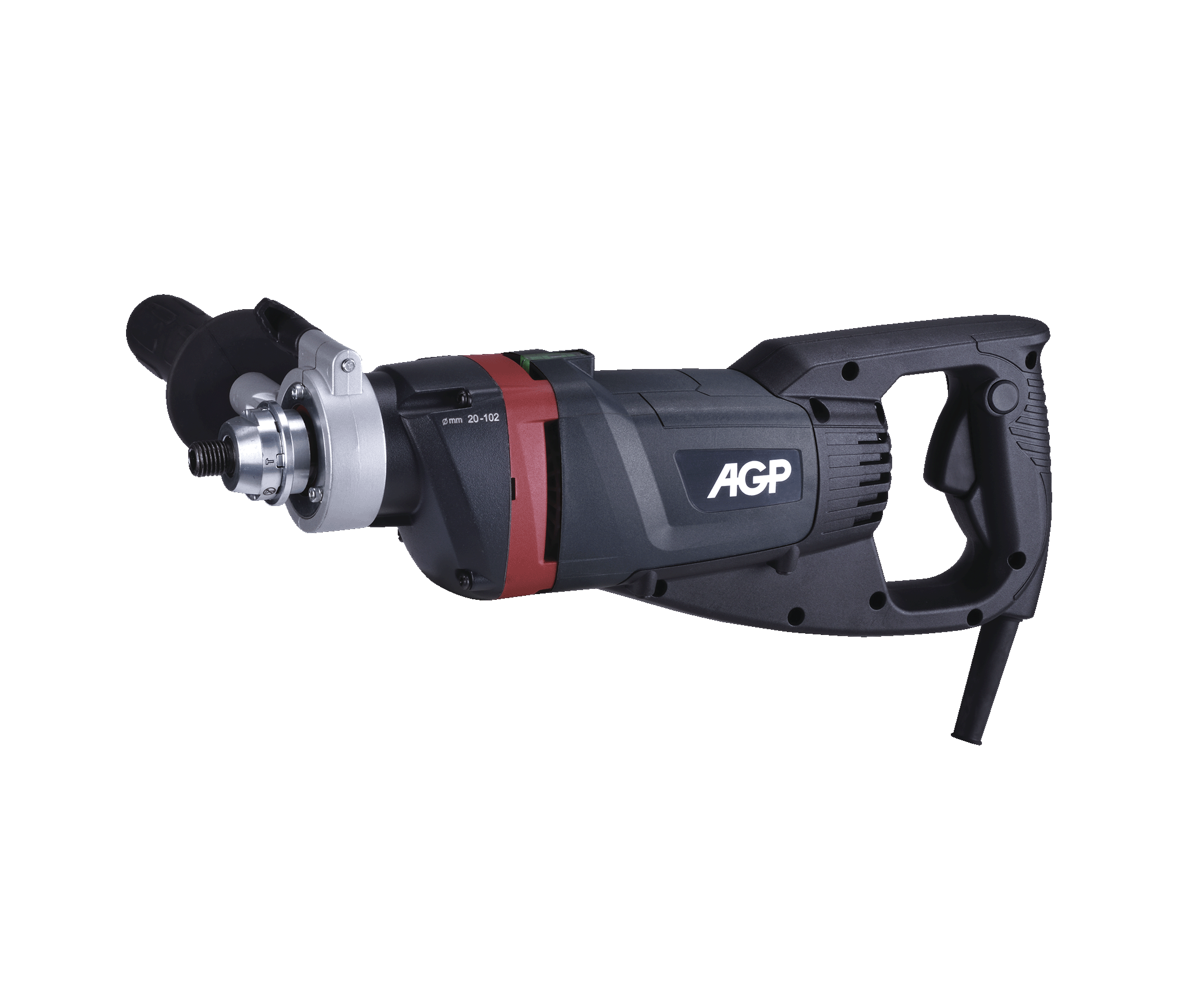

Dry Diamond Core Drill Motor DME51D

A compact, high efficiency 1-speed 1800 W dry drilling motor for drilling up to 102 mm.Suitable for drilling of highly abrasive materials. Switchable soft percussion allows optimal dry drilling performance.

Gear box with mechanical clutch.
Smart Electronic Control with soft-start, thermal protection, and overload protection.
Switchable soft percussion for optimized dry drilling.
Side Handle in-line with spindle centerline for best control.
The dust and water resistant solid-state switch is more durable and reliable than traditional switches.
Built in horizontal levels for precision.

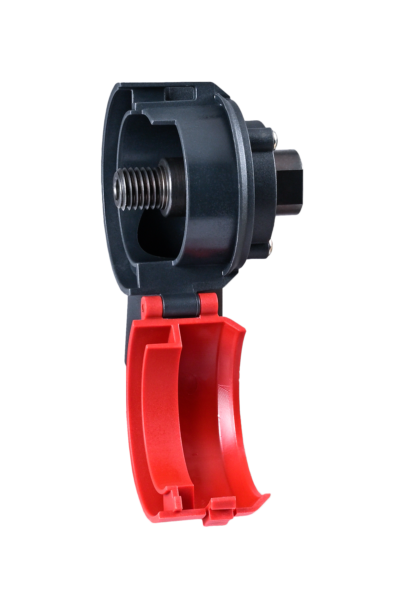

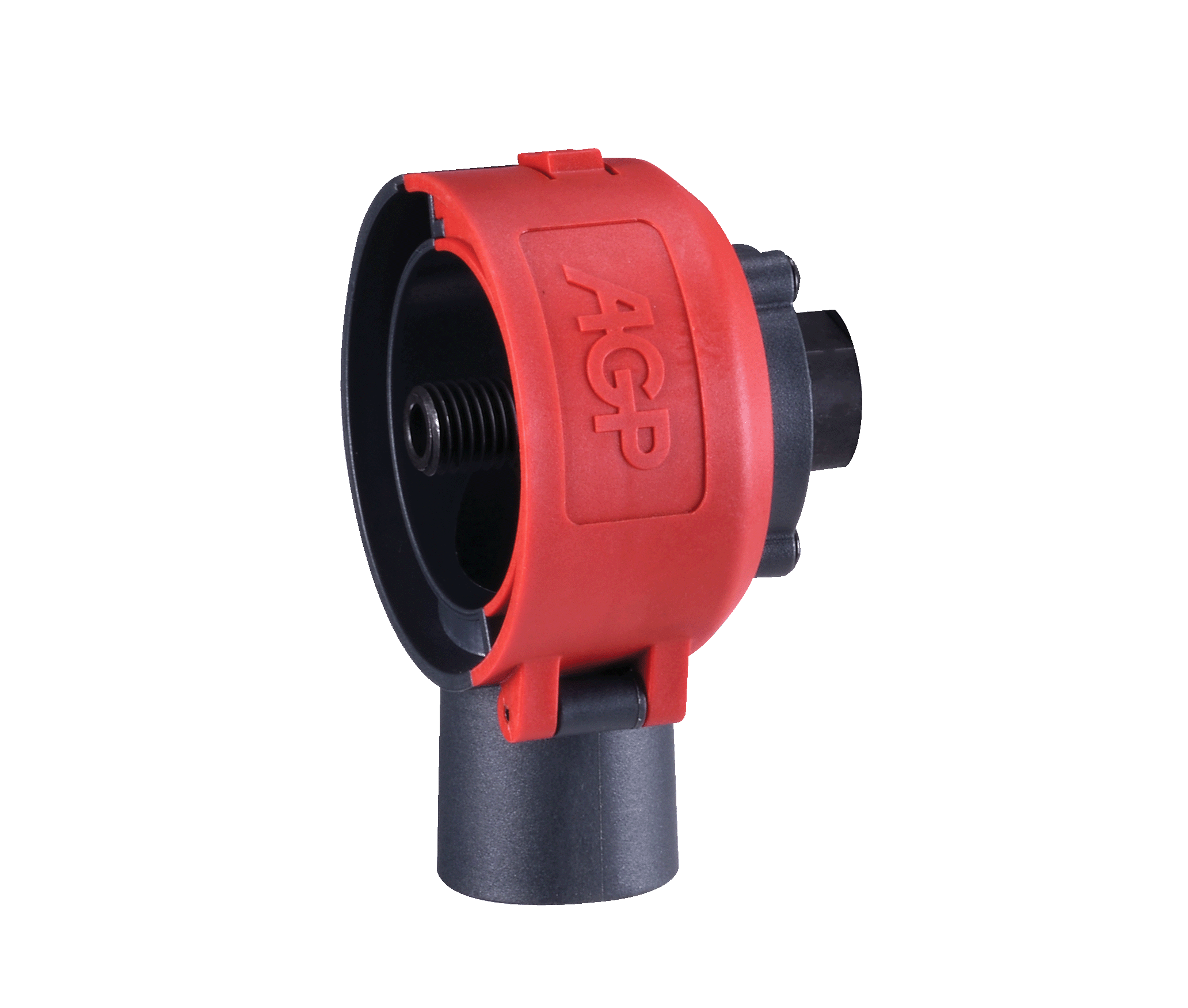

External Dust Extractor Head for use with 50 to 82 mm banana slot type bits (Optional).
Spring-loaded Centering Pilot for L 85 mm bits or for L 65 mm bits. (Optional).

Specifications

Model	DME51D
Power Input	1800 W
Voltage, Frequency	220-240 V~ 50-60 Hz ili 110-120 V~ 50-60 Hz
No Load (Rated Load) Speed	3600 (2160) /min
Percussion Frequency (No Load / Rated Load)	56,000 (36,400) b/min
Capacity-Dry	102 mm (4″)
Soft Start & Overload Protection	Da
Spindle Thread	M16–2.0 male ili M18–2.5 male (Navesti pri naručivanju)
Insulation Class	Class II
Dimensions (L × W × H)	450 mm x 90 mm x 210 mm
Weight	4.7 kg (10.4 lb)
