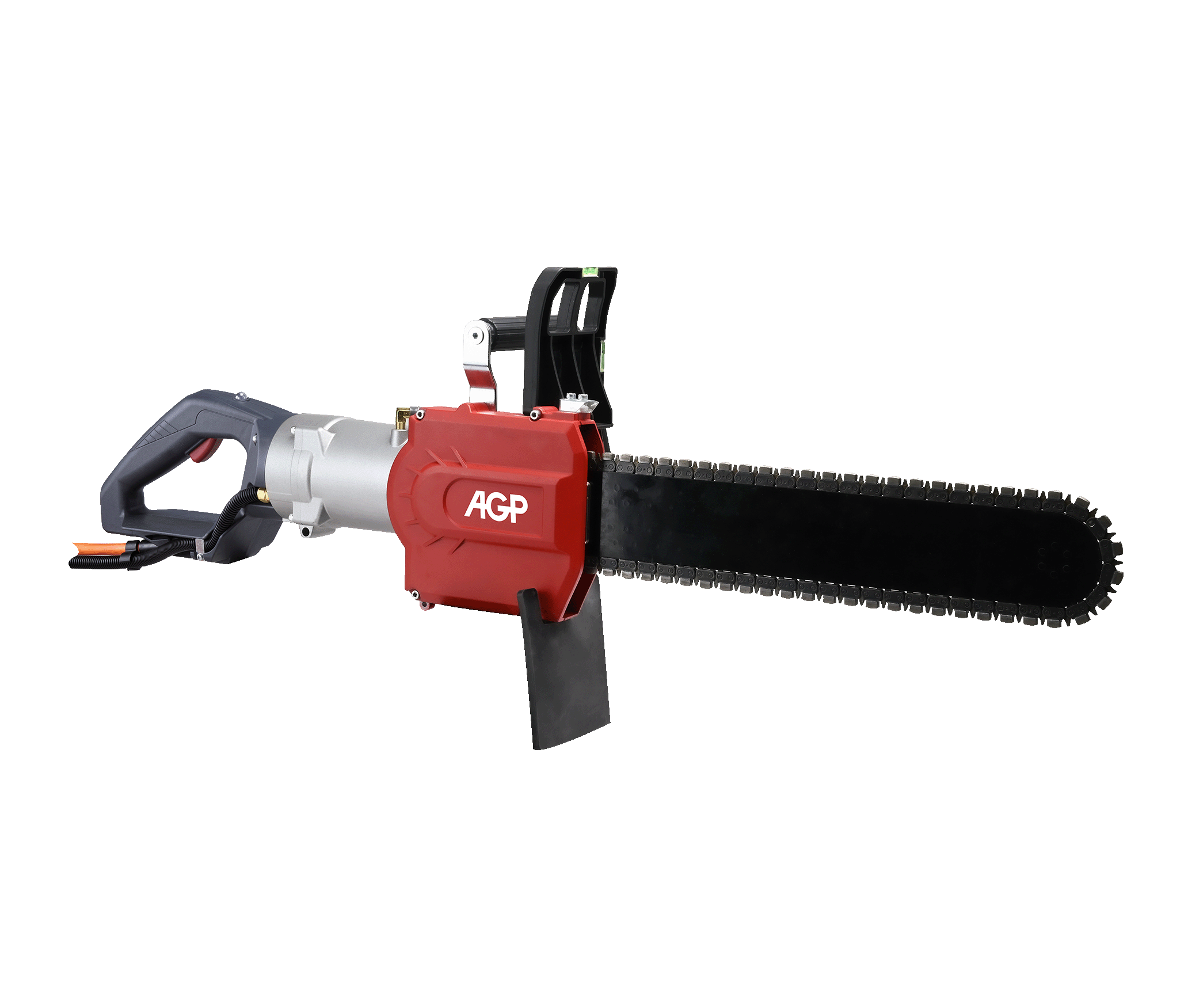

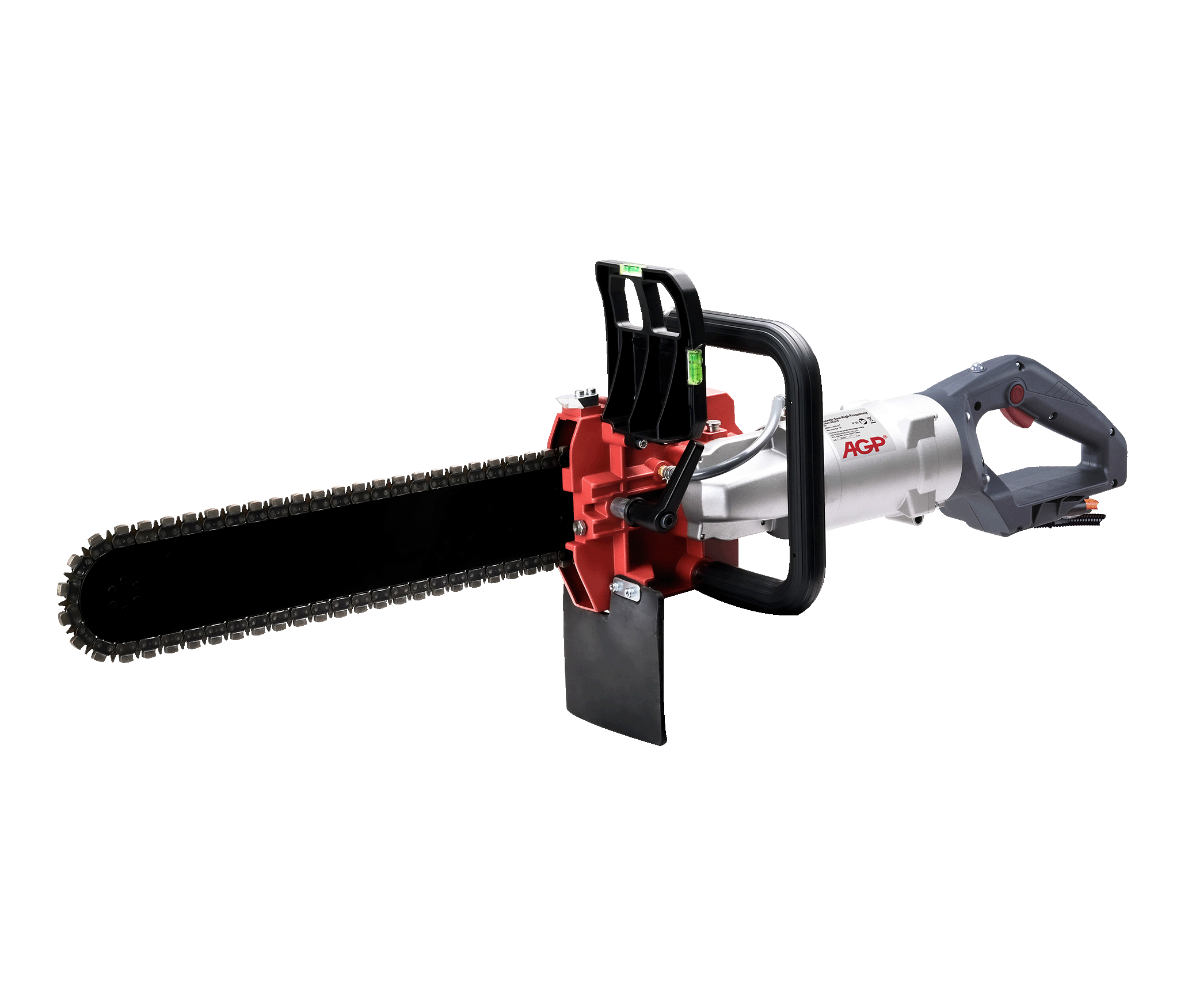

High Frequency Concrete Chainsaw HCS19 + P9K

High Frequency Concrete Chainsaw HCS19 + P9K
High Frequency Concrete Chainsaw HCS19 + P9K - Image 2
High Frequency Concrete Chainsaw HCS19 + P9K - Image 3
High Frequency Concrete Chainsaw HCS19 + P9K - Image 4

Concrete chainsaw with 6600 W high frequency permanent magnet synchronous motor. Excellent for deep plunge cuts and precise corner cut outs with no overcuts.

  • Constant speed is maintained regardless of load.
  • LED Indicator Indicates load conditions
    (electronic & thermal protection).
  • Bumper Spike for increased leverage.
  • Flexible Splash Flap helps contain slurry.
  • Dual plane horizontal and vertical spirit levels for precise alignment.
  • Wide base for setting tool down and adjusting.
  • Design allows cutting close to the wall.
  • Tool-free bar clamp lever for faster chain tension adjustment.
  • Special motor coupling cable.
  • The dust and water resistant solid-state switch is more durable and reliable than traditional switches.

Specifications

ModelHCS19
Power Input3φ~380-480 V: 6600 W
No Load Speed8500/min
Pitch0.444″
Guide Bar Nominal Length12″ , 14″, 16″ or 18″
Max. Cutting Depth470 mm (w/ 18″ Bar)
Soft Start & Overload ProtectionDa
Dimensions (L × W × H)569 x 218 x 312 mm
Weight8.7 kg (19.1 lb)
NoteThis tool must be used with the P9K Power Converter
ModelP9K
Power Input (maximum)3φ~380-480 V : 16A 9000 W
Min. Water Flow (25°C)3.5 L/min (1 gpm)
Max. Water Pressure7 bar (100 psi)
Dimensions (L × W × H)442 x 219 x 251 mm
Weight6.0 kg (13.2 lb)
