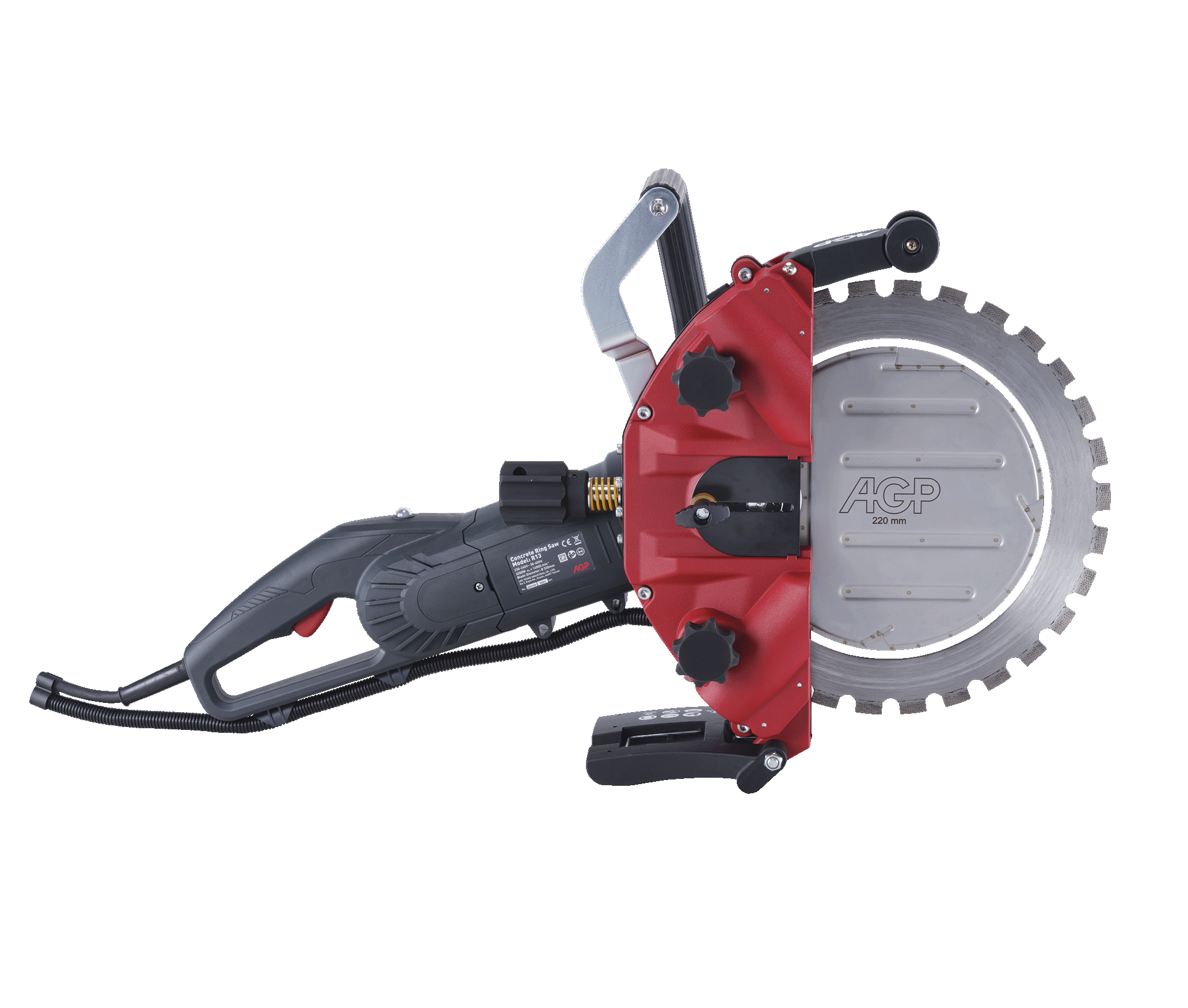

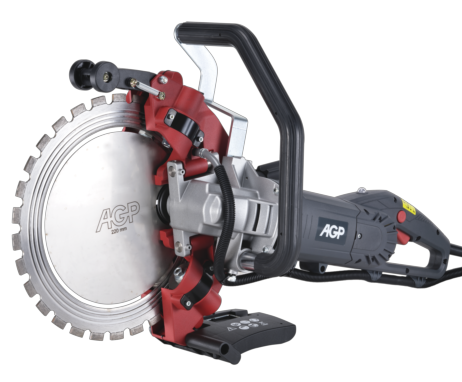

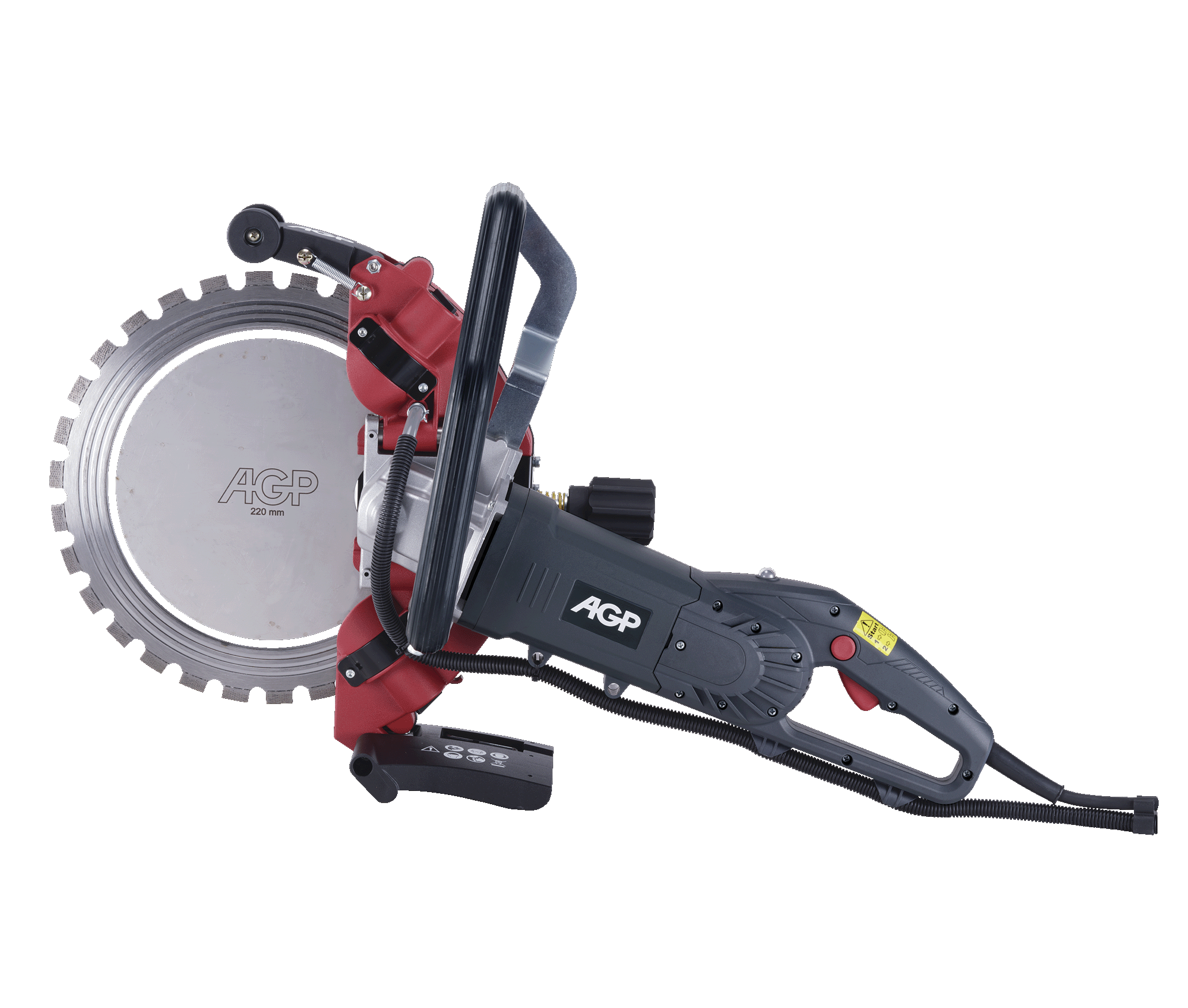

Ring Saw R13

330 mm (13″) wet ring saw with 3200 W universal motor for up to 220 mm depth of cut.

Patented One Step Drive Tensioner makes fast and easy blade adjustment and keeps tension equalized.
Change saw blade quickly and without disassembly of the cover.
High Stability Guide Roller design keeps the blade stable and centralized when beginning the cut.
LED Indicator Indicates load conditions
(electronic & thermal protection).
Flexible upper and bottom splash guards prevent splashing slurry.
The dust and water resistant solid-state switch is more durable and reliable than traditional switches.
Water feed system with fine adjustable flow and quick release coupling.
Externally accessible brushes.

Model	R13
Power Input	3200 W (230-240 V), 3000 W (220 V), 2800 W (110-120 V)
Voltage, Frequency	230-240 V~ 50-60 Hz, 220 V~ 50-60 Hz or 110-120 V~ 50-60 Hz
No Load Speed	3900 /min
Blade Diameter	330 mm (13″)
Max. Cutting Depth	220 mm (8.7″)
Soft Start & Overload Protection	Da
Insulation Class	Class I, (220-240 V models with PRCD / GFCI)
Dimensions (L × W × H)	730 mm x 280 mm x 450 mm
Weight	12.4 kg (27.3 lb)(Not incl. blade)
