Wet/Dry Diamond Core Drill Motor DMC160

Wet/Dry Diamond Core Drill Motor DMC160
Wet/Dry Diamond Core Drill Motor DMC160 - Image 2
Wet/Dry Diamond Core Drill Motor DMC160 - Image 3
Wet/Dry Diamond Core Drill Motor DMC160 - Image 4

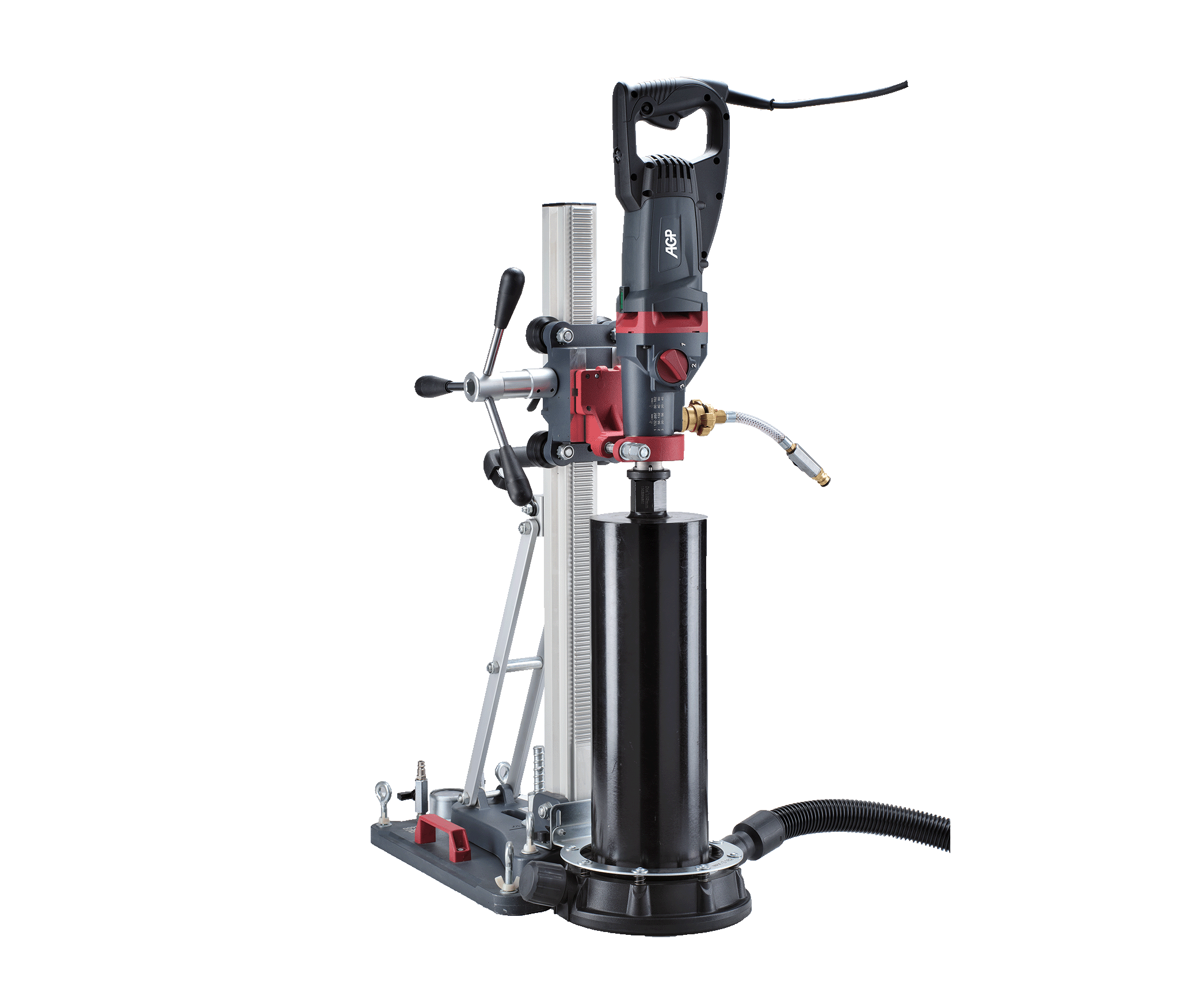

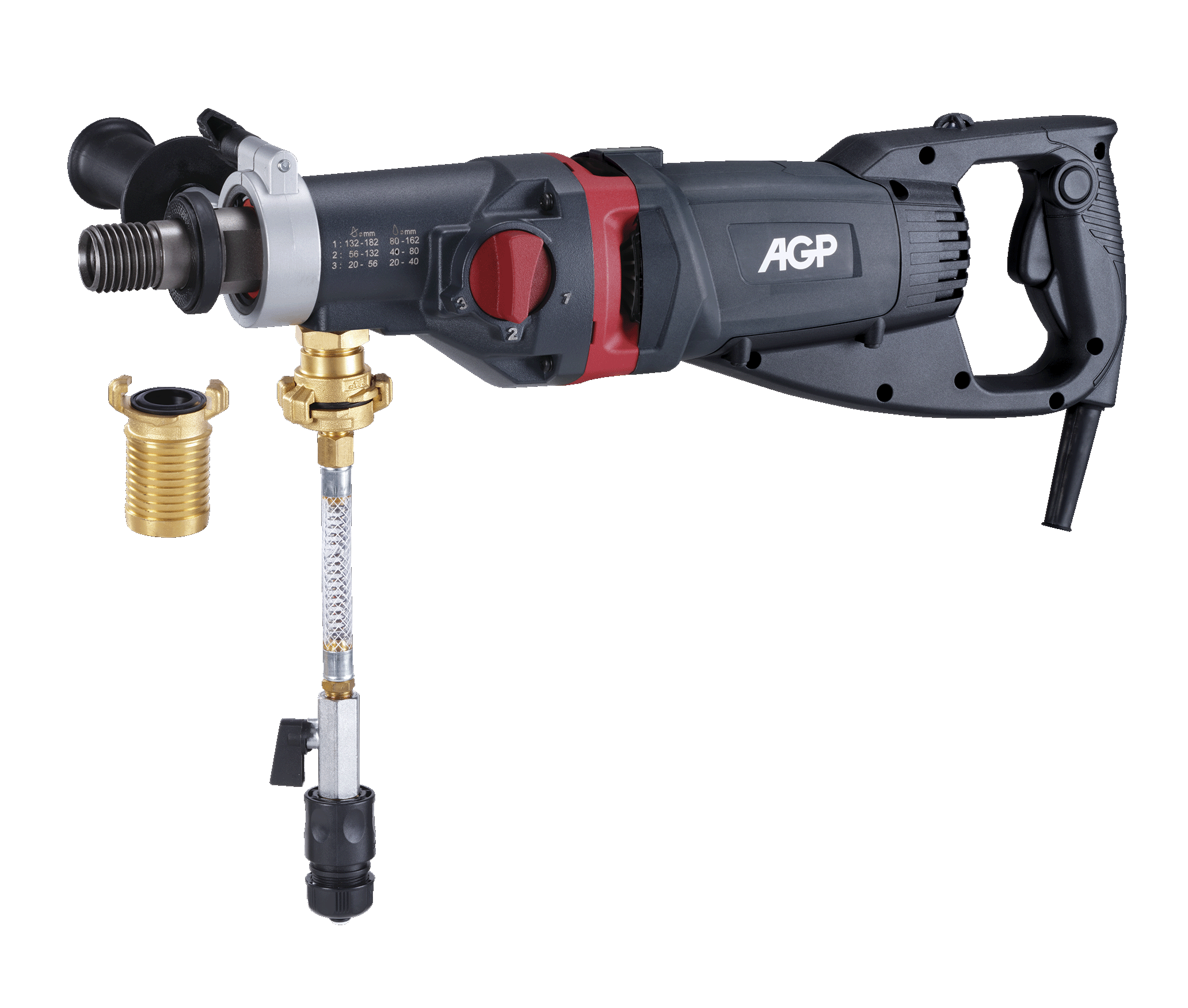

A 3-speed 2200 W wet and dry drilling motor for drilling up to 162 mm in wet, and 202 mm in dry. An excellent choice for an all-around tool for many tasks.

  • 3-Speed Gear Box with clutch.
  • Smart Electronic Control with soft-start, thermal protection, and overload protection.
  • Highly visible LED indicator for optimizing drilling efficiency with overload and overheat warning.
  • The dust and water resistant solid-state switch is more durable and reliable than traditional switches.
  • Anti-seize ring to keep core bits from getting stuck on the spindle.
  • Side Handle in-line with spindle centerline for best control.
  • Built in horizontal level for precision.

Specifications

ModelDMC160
Power Input2200 W (230-240 V), 2000 W (220 V), 1700 W (110-120 V)
Voltage, Frequency230-240 V~ 50-60 Hz, 220 V~ 50-60 Hz ili 110-120 V~ 50-60 Hz
No Load Speed (/min)1000 / 1600 / 4600
Rated Load Speed (/min)650 / 1040 / 2890
Capacity-WetHand-Held : 82mm (3-1/4″)
Rig-Mounted : 162 mm (6-1/2″)
Capacity-Dry202 mm (8″)
Gear Oil Type80W-90
Gear Oil Capacity200 ml
Spindle Thread (External / Internal)1-1/4” UNC male & 1/2” BSP female
Neck Diameter60 mm
Soft Start & Overload ProtectionDa
Mechanical Safety ClutchDa
Insulation ClassKlasa II with PRCD / GFCI
Dimensions (L × W × H)528 mm x 106 mm x 145 mm
Weight5.8 kg (12.8 lb)
